MIL-PRF-83287/1D
Inches
mm
.006
0.15
.008
0.20
.035
0.89
.046
1.17
.055
1.40
.060
1.52
.062
1.57
.078
1.98
.250
6.35
.310
7.87
.324
8.23
.450
11.43
.475
12.07
.510
12.95
.512
13.00
.515
13.08
.5312
13.492
.533
13.54
.615
15.62
.625
15.88
.630
16.00
.715
18.16
8.000
203.20
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerance is ± .005 (0.13 mm).
4. The flag and the flat on the mounting bushing shall be aligned approximately as shown.
5. The shape and location of the solder terminal shown is not intended to limit specific manufacturing processes.
When the shape of terminal in the schematic is used, the hole diameter shall be as shown.
6. The positive terminal shall be identified by a red dot.
7. Mounting torque of 5 to 7 in-lbs. May be used.

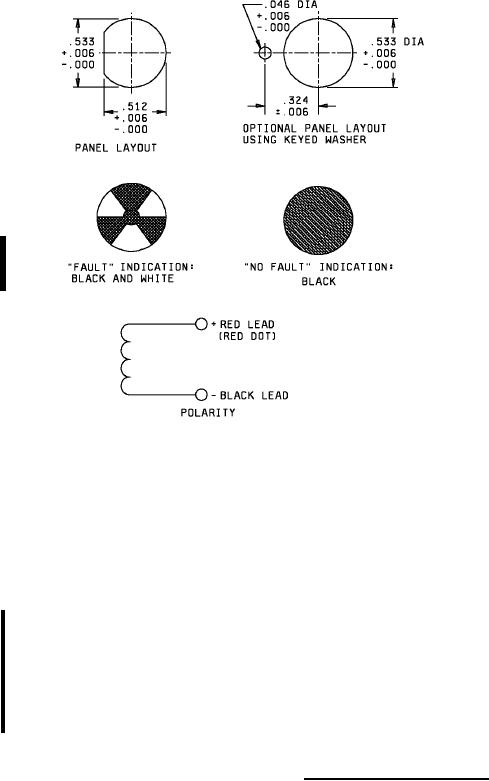

FIGURE 1. Dimensions and configurations Continued.
