MIL-PRF-83287/2E
Inches
mm
.006
0.15
.035
0.89
.045
1.14
.055
1.40
.062
1.57
.078
1.98
.240
6.10
.250
6.35
.312
7.92
.324
8.23
.4687
11.904
.475
12.07
.562
14.27
.593
15.06
1.00
25.4
1.032
26.21
1.200
30.48
8.000
203.20
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerance is ± .005 (0.13 mm).
4. The flag and the flat on the mounting bushing shall be aligned approximately as shown.
5. The shape and location of the solder terminal shown is not intended to limit specific manufacturing
processes. When the shape of terminal in the schematic is used, the hole diameter shall be as shown.
6. The positive terminal shall be identified by a red dot.
7. Mounting torque of 5 to 7 in-lbs may be used.

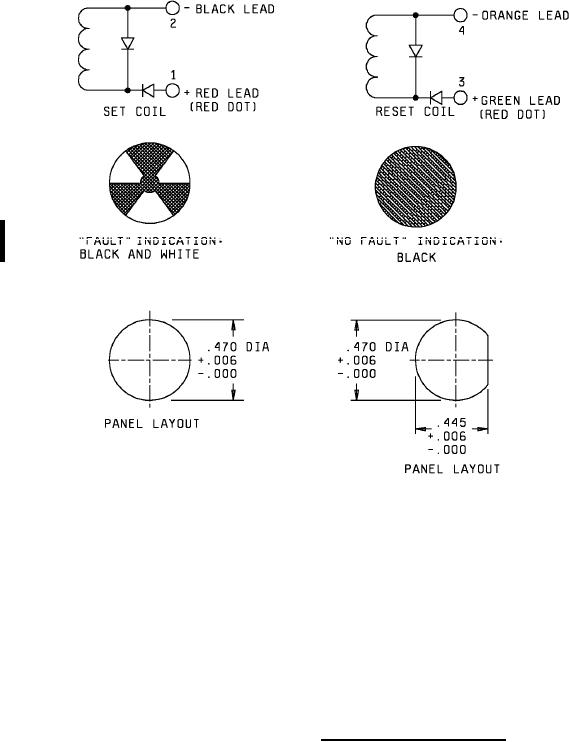

FIGURE 1. Dimensions and configurations - Continued.
3
