MIL-PRF-83287/4C
Inches
mm
.003
0.08
.006
0.15
.040
1.02
.044
1.12
.045
1.14
.060
1.52
.120
3.05
.155
3.94
.200
5.08
.220
5.59
.240
6.10
.313
7.95
.327
8.31
.335
8.51
.370
9.40
.395
10.03
.445
11.30
.4687
11.904
.470
11.94
.563
14.30
.593
15.06
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerance is ±.005 (0.13 mm).
4. The mounting nut shall be black.
5. The shape and location of the solder terminal shown is not intended to limit specific manufacturing processes.
When the shape of terminal in the schematic is used, the hole diameter shall be as shown.
6. No fault indication color may be lusterless gray as specified in FED-STD-595/36081.
7. Mounting torque of 5 to 7 in lbs may be used.

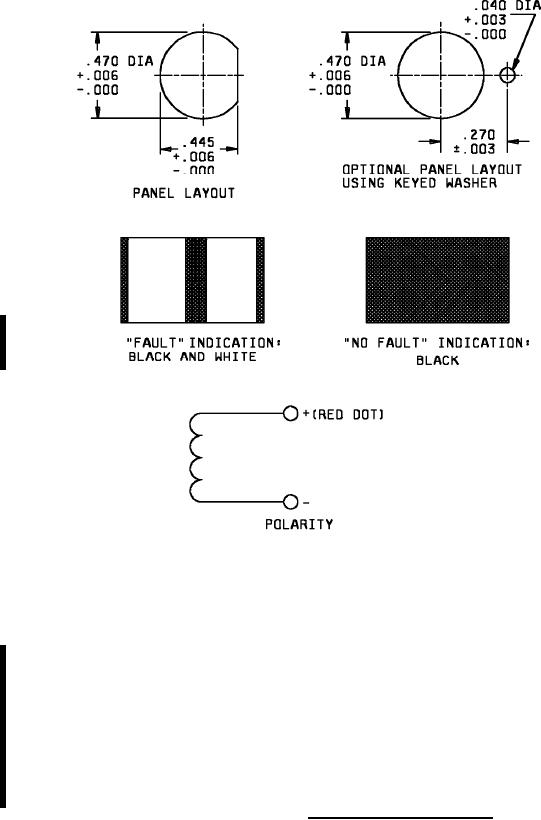

FIGURE 1. Dimensions and configurations - Continued.
2
